1m 5m 10m UTP Shielded Lan Cable 4 Pair Twisted RJ45 Network Patch Cord

Name: 1m 5m 10m UTP Shielded Lan Cable 4 Pair Twisted RJ45 Network Patch Cord
Brand: JiangHong or OEM
Price: 1 USD

Quality 1m 5m 10m UTP Shielded Lan Cable 4 Pair Twisted RJ45 Network Patch Cord for sale

Brand Name : JiangHong or OEM

Model Number : Patch cord

Certification : ISO,TLC,3C

Place of Origin : Sichuan,China

MOQ : 1000 PCS

Price : Can be negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000 PCS per Month

Delivery Time : 5-8Days

Packaging Details : Carton+Pallet

Number of conductor : 8

Material of conductor : Copper

Type : RJ45 Patch Cord

Application : Local Communication,Telecommunication, Instrumentation, Networks

Shield : Unshield

Color : Customized

Jacket : PVC,LSZH

Length : customized service

Contact Now

We are 22 years Coaxial cable, Fiber optic cable, Lan cable manufacturer.

PRODUCT DESCRIPTION
Twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density can effectively reduce signal interference, and then wrap multiple pairs of twisted pairs into an insulated cable jacket.

FEATURES
Low attenuation, low crosstalk;
wide transmission bandwidth and high transmission rate;

APPLICATIONS
Indoor / Outdoor, For the military, hospitals, banking and financial systems, etc.

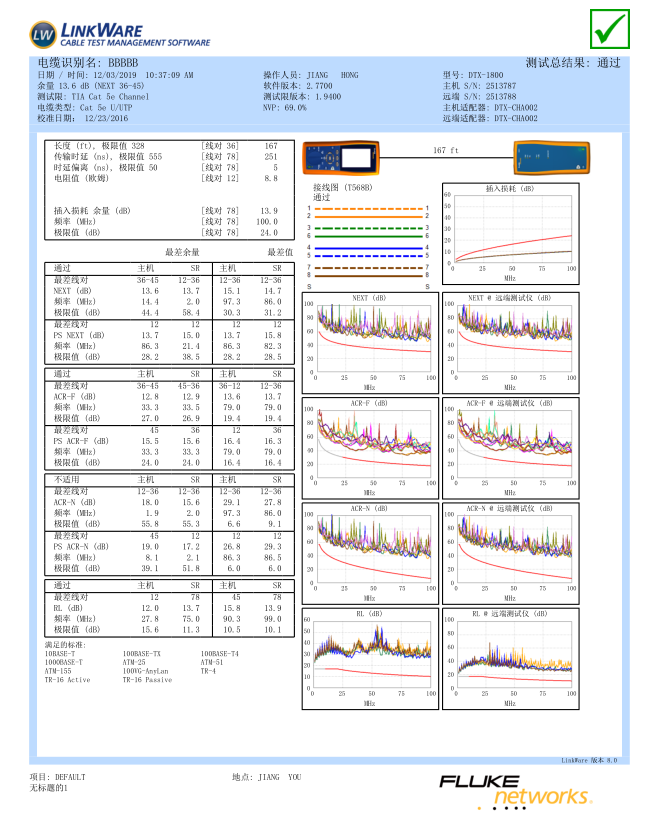

FLUKE TEST: 0.44mm copper pass 90mts, 0.50mm CCA past 90mts.

1. Construction (UTP CAT5E):
Conductor: Solid bare copper , AWG 24
Conductor Dia(mm): 0.51
Insulation: PE
Average thickness ( +/-0.03mm): 0.25mm
Min point thickness: 0.22mm
Insulation Dia ( +/-0.03mm): 1.00mm
Jacket: PVC,PE or LSZH
Average thickness: 0.5
Min point thickness: 0.46
Outer Dia( +/-1.0mm) 5.1
Rip cord: YES
Core color:
Pair 1: Blue - white/blue
Pair 2: Orange - white/orange
Pair 3: Green - white/orange
Pair 4: Brown - white/brown

2. Electrical Performance (At 100MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15
1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max
Conductor DC resistance 20%(ohms/km) <93.8
Resistance Unbalance(%): 5
Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ /Km
Conductor Resistance Max. 9.38Ω /100m at 20
Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m
Mutual Capacitance Max. 5600 pF/100m

1m 5m 10m UTP Shielded Lan Cable 4 Pair Twisted RJ45 Network Patch Cord

3. Package

Blister box + carton + pallet,Can be adjusted according to customer requirements.

FAQ

1.Are you the factory?
Yes, we are the factory with 22 years' history.

2. What is your main products?
Fiber optic cable: Outdoor/Indoor
Central loose tube/Stranded loose tube
FTTH Drop cables
ADSS
Coaxial cable: RG59/RG6/RG11
Network Data cable:UTP/FTP/SFTP
CAT5/CAT5e/CAT6/CAT7
Power cable: RVV series products
Various combination cables: Coaxial & Data cable
Coaxial & Fiber optical cable
RVV & Data cable
RVV & Fiber optical cable
3. Do you have certificate for raw material?
Yes, we do. We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?
Sample ready date is 2-3 days
Mass production is around 7-14 days

5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 2KM
MOQ for coaxial cable:1KM
There is no MOQ required for CAT5e/CAT6 cable, as there's stock for normal kinds.

6. Are you willing to cooperate with distributors?
We are currently seeking distributors in many countries around the world for long-term cooperation.
7. Have you worked with operators?
Yes, we have many years of experience in cooperation and supply with operators.

8. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services, any of which is optional.
